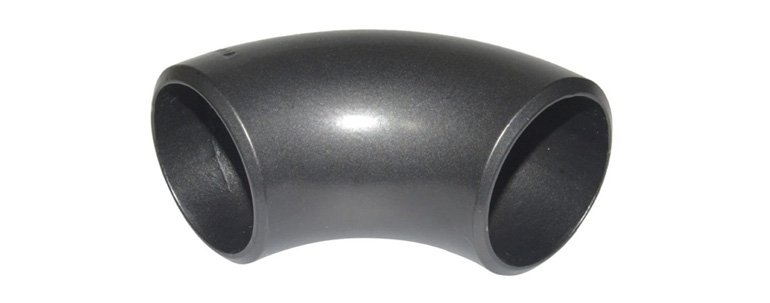

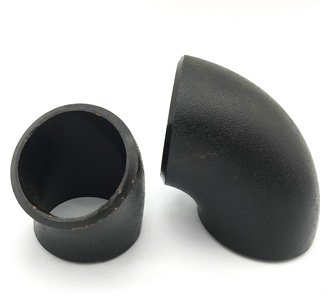

A234 Wbp Elbow Pipe Fittings Manufacturers in India

ASTM A234 WPB Pipe Fittings, A234 Buttweld Fitting, Mild Steel WPB Butt weld Pipe Fittings, Stockist of Mild Steel A234 Gr. WPB Buttweld Pipe Fittings, Mild Steel WPB Elbow Dealer in India, Global Supplier of A234 CS WPB Butt weld Pipe Fittings, ANSI B16.9 Mild Steel Reducer.

A234 Wbp Elbow Pipe Fittings Manufacturers in India. Leading suppliers dealers in Mumbai Chennai Bangalore Ludhiana Delhi Coimbatore Pune Rajkot Ahmedabad Kolkata Hyderabad Gujarat and many more places. Sachiya Steel International manufacturing and exporting high quality A234 Wbp Elbow Pipe Fittings worldwide. We are India's largest A234 Wbp Elbow Pipe Fittings Exporter, exporting to more than 85 countries. We are known as A234 Wbp Elbow Pipe Fittings Manufacturers and Exporters due to exporting and manufacturing on a large scale.

A234 Wbp Elbow Pipe Fittings Manufacturers Exporters in Mumbai India

A234 Wbp Elbow Pipe Fittings Manufacturers in India: Types of A234 Wbp Elbow Pipe Fittings-

We at Sachiya Steel International manufacture a wide variety of A234 Wbp Elbow Pipe Fittings. There is a different types of A234 Wbp Elbow Pipe Fittings used for different needs.Our A234 Wbp Elbow Pipe Fittings are available in different sizes, grades and shapes. Sachiya Steel International manufactures and exports high-quality industrial A234 Wbp Elbow Pipe Fittings. We are Exporters of the following Mild steel Pipe Fittings -Also We offer wide range of Mild Steel ASTM A234 WPB pipe fittings such as Mild Steel tee, WPB Mild End Pipe Cap, ASTM A234 WPB CS reducer, A234 WPB Mild Steel cross, Mild Steel A234 WPB elbow, Mild Steel WPB stub ends etc.

Specification of MILD STEEL A234 WPB ELBOW PIPE FITTINGS
ASTM A234 Gr WPB Pipe Elbow size CS A234 Seamless Pipe Elbow: 1/2" - 10"
CS ASTM A234 gr WPB Welded Pipe Elbow: 1/2" - 48"
ASTM A234 Grade WPB Elbow Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASTM A234 WPB Carbon Steel Elbow Type DN15-DN1200
Pipe Elbow Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom WPB Carbon Steel Elbows
Grade WPB Pipe Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel sch 40 A234 Pipe Elbow Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available witd NACE MR 01-75
CS ASTM A234 Pipe Elbow Manufacturing process Push, Press, Forge, Cast, etc.
ASTM A234 Pipe Elbow Standards 1-ASME B 16.9 for large Bore
2-ASME B 16.11 for small Bore (socket welded)
3-ASME B 16.25 for butt weld ends
4-ASME B 16.28 for small radius elbow
ASTM A234 WPB Elbow Surface treatment Sand blasting, Sand Rolling, Sand Blasting
CS ASTM A234 Gr WPB Pipe Elbow Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Grade WPB Elbows
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
ASTM A234 Gr WPB Carbon Steel Buttweld Pipe Elbow Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Application & uses of Industrial CS A234 WPB Pipe Elbow
  • Used in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • A234 WPB SCH 10 Elbow are an economical alternative for lower-pressure applications.
  • A234 WPB SCH 40 Elbow have a tdicker wall for higher-pressure applications.
  • A234 WPB SCH 80 Elbow for petrochemical industry
Grades of MS A234 WBP Pipes
  • ELBOW 90DEG BW Schedule 10 ASTM A234 WPB Elbow, ASME B16.9
  • ELBOW 90DEG BW Schedule 20 ASTM A234 WPB Elbow, ASME B16.9
  • ELBOW 90DEG BW Schedule 40 ASTM A234 WPB Elbow, ASME B16.9
  • ELBOW 90DEG BW Schedule 80 ASTM A234 WPB Elbow, ASME B16.9
  • ELBOW 90DEG BW Schedule 120 ASTM A234 WPB Elbow, ASME B16.9
  • ELBOW 90DEG BW Schedule 160 ASTM A234 WPB Elbow, ASME B16.9

A234 Wbp Elbow Pipe Fittings Manufacturers in India: About A234 Wbp Elbow Pipe Fittings -

Sachiya Steel International is one of the largest A234 Wbp Elbow Pipe Fittings Manufacturers in India. Seamless pipe as the name suggests is a pipe without a seam or a weld-joint in contrast to Seam or Welded pipe. In a Seam or Welded pipe, the seam or the weld-joint is the weaker part of the pipe limiting the strength of the pipe to the strength of the weld-joint. Whereas the seamless pipe does not have any such joint and thus has uniform structure and strength all over the pipe body. Thus the seamless pipe can withstand higher pressure, higher temperature, higher mechanical stress and corrosive atmosphere and find wide applications in Oil and Gas, Refinery, Petrochemical, Chemical, Fertilizer, Power, Automotive, Bearing, Mechanical and Structural applications. We also known as A234 Wbp Elbow Pipe Fittings Manufacturers in India.

Chemical Compositions of A234 Wbp Elbow Pipe Fittings

WPB B,C,D,E, WPC C,D,E, WP11 CL1 WP11 CL2, WP11 CL3 WP22 CL1, WP22 CL3 WP5 CL1, WP5 CL3 WP9 CL1, WP9 CL3 WP91
Carbon 0.3 0.35 0.05–0.15 0.05–0.20 0.05–0.20 0.05–0.15 0.05–0.15 0.15 0.15 0.15 0.08–0.12
Manganese 0.29–1.06 0.29–1.06 0.30–0.60 0.30–0.80 0.30–0.80 0.30–0.60 0.30–0.60 0.30–0.60 0.30–0.60 0.30–0.60 0.30–0.60
Phosporus 0.05 0.05 0.03 0.04 0.04 0.04 0.04 0.04 0.03 0.03 0.02
Sulfur 0.058 0.058 0.03 0.04 0.04 0.04 0.04 0.03 0.03 0.03 0.01
Silicon 0.10 min 0.10 min 0.50–1.00 0.50–1.00 0.50–1.00 0.5 0.5 0.5 1 1 0.20–0.50
Chromium 0.4 0.4 1.00–1.50 1.00–1.50 1.00–1.50 1.90–2.60 1.90–2.60 4.0–6.0 8.0–10.0 8.0–10.0 8.0–9.5
Molybdenum 0.15 max 0.15 max 0.44–0.65 0.44–0.65 0.44–0.65 0.87–1.13 0.87–1.13 0.44–0.65 0.90–1.10 0.90–1.10 0.85–1.05
Nickel 0.4 0.4 … … … … … … … … 0.4
Copper 0.4 0.4 … … … … … … … … …
Others Vanadium 0.08 Vanadium 0.08 … … … … … … … … …

SA234 WPB Elbow Mechanical Properties

Check below ASTM A234 WPB Elbow Mechanical Properties before you order.

Tensile Requirements WPB WPC, WP11CL2 WP11CL1 　WP11CL3
Tensile Strength, min, ksi[MPa] 60-85 70-95 60-85 　75-100
(0.2% offset or 0.5% extension-under-load) [415-585] [485-655] [415-585] 　[520-690]
Yield Strength, min, ksi[MPa] 32 40 30 45
[240] [275] [205] [310]

A234 Wbp Elbow Pipe Fittings Manufacturers in India: Industrial A234 Wbp Elbow Pipe Fittings -

  • Oil & Gas Industries
  • Chemical Industries
  • Automotive Industries
  • Fertilizer Industries
  • Petrochemical Industries
  • Power Industries
  • Mechanical and Structural Industries
  • Refinery Industries

We are leading Exporters of A234 Wbp Elbow Pipe Fittings in more than 85 Countries worldwide.

A234 Wbp Elbow Pipe Fittings Exporters in Mumbai India

Types of Mild Steel Elbows : -

  • SA234 WPB Long Radius Elbow
  • MS ASTM A234 gr WPB Buttweld Elbow
  • MS ASTM A234 WPB Forged Elbow
  • MS SA234 Pipe Elbow
  • MS SA234 WPB Threaded Elbow
  • Mild Steel SA234 Buttweld Elbow 45 Degree
  • Grade WPB ANSI B16.9 45 Deg Pipe Fittings Elbow
  • ASTM A234 WPB ASME B16.9 Elbow
  • SA234 WPB Carbon Steel LR Elbow
  • CS SA234 Steel Pipe Elbows
  • SA234 CS WPB 1D Elbow
  • SA234 Mild Steel Reducing Elbow

A234 Wbp Elbow Pipe Fittings Manufacturers in India: Cities we supply A234 Wbp Elbow Pipe Fittings to -

Sachiya Steel International is manufacturer supplier of A234 Wbp Elbow Pipe Fittings in most of the major Indian cities in more than 20 states. We are leading supplier of A234 Wbp Elbow Pipe Fittings in Mumbai, Ahmedabad, Ludhiana, Delhi, Rajkot, Pune, Coimbatore, Chennai, Bangalore and many other cities. The complete list of cities we supply our A234 Wbp Elbow Pipe Fittings to is mentioned in the below table.

Sachiya Steel International is Leading manufacturers of Pipe Fitting in the following cities -
Bengaluru Mumbai Chennai Hyderabad Kolkata Pune
New Delhi Ahmedabad Jaipur Surat Salem Gandhinagar
Bhiwandi Tiruppur Sivakasi Jamnagar Thiruvananthapuram Rajahmundry
Bhubaneswar Vijaywada Firozabad Bokaro Steel City Rajkot Bharuch
Panna Raipur Cochin Ludhiana Panipat Durgapur
Peenya Pimpri-Chinchwad Channapatna Kharagpur Nashik Bareilly
Varanasi Haldia Rourkela Bangalore Moradabad Indore
Visakhapatnam Trivandrum Pithampur Dibrugarh Angul Gwalior
Coimbatore Kannur Nagpur Vadodara Rudrapur Noida
Agra Bhagalpur Jamshedpur Bhilai Lucknow kanpur
Thane Bhopal
+91 9769056007 sales@sachiyasteel.com

A234 Wbp Elbow Pipe Fittings Exporters in Mumbai: Sachiya Steel International Exports A234 Wbp Elbow Pipe Fittings to following countries -

A234 Wbp Elbow Pipe Fittings exporters in Saudi Arabia, Oman, Dubai, UAE, Mexico, Kuwait, Qatar, Iraq and many other countries. Sachiya Steel International has created a brand name for itself in the international market, by exporting large quantities of high-quality A234 Wbp Elbow Pipe Fittings.

Sachiya Steel International is Exporter of Bolts Nuts Screws in the following countries -
Saudi Arabia Oman Kuwait Netherlands Iran
Bahrain Qatar UAE Africa China
Nigeria Mexico Canada Venezuela United Kingdom
United States South Africa Malaysia Bangladesh Turkey
Singapore Sri Lanka Australia Brazil
Additional Information -

A234 Wbp Elbow Pipe Fittings Price: Rs.160-260 /Piece
Payment Modes: LC(Letter of Credit), TT(Telegraphic Transfer or Wire Transfer), Cheque and others.
Packaging: A234 Wbp Elbow Pipe Fittings are packaged with caution and safety so they reach our clients as good as he would expect.
Port of Dispatch: Mumbai or Kalamboli ports in Maharashtra state of India.
Note: The size, quantity, quality and other details of the A234 Wbp Elbow Pipe Fittings will be written/printed on the packaging of the shipment for convenience.
